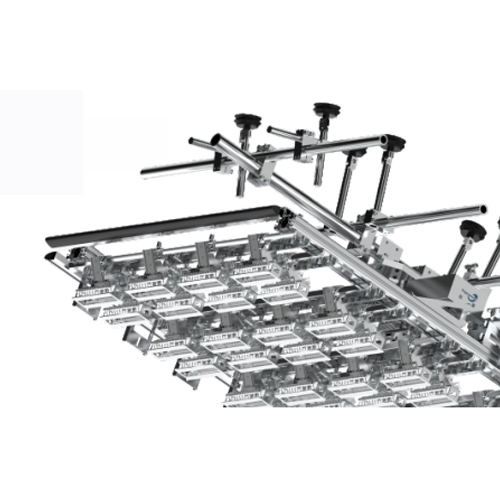

通過不同針刺組組合，可以實現不同零件的抓取。
Different parts can be grasped by different acupuncture groups.
通過不同針刺組組合，可以實現不同零件的抓取。
Different parts can be grasped by different acupuncture groups.
序號 S/N | 型號Model | 結構形式Structural style | 動力形式Dynamic form | 底板長度mm Floor length | 底板寬度mm Floor Width | 單組刺針數量 Number of needles per group | 針刺行程mm Needling stroke | 刺針直徑mm Needle diameter |
1 | HW-ZCR-16626 | 針刺交叉 Needle crossing | 氣缸 Cylinder | 160 | 60 | 26 | 0-35 | 3 |
2 | HW-ZCH-10708 | 100 | 70 | 8 | 0-35 | 3 | ||
3 | HW-ZCT-2045 | T型一體式結構 T-shaped integrated structure | 20 | 45 | 24 | 0.1-5 | 0.8-1.6 | |
4 | HW-ZCT-3070 | 30 | 70 | 36 | 0.1-5 | 0.8-1.6 | ||
5 | HW-ZCT-30120 | 30 | 120 | 48 | 0.1-5 | 0.8-1.6 | ||

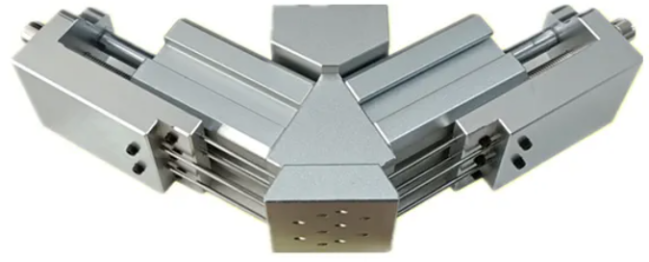

6 | HW-ZCT-3545 | V型一體式結構 V-shaped integrated structure | 35 | 45 | 10 | 0.1-15 | 1.2 | |
7 | HW-ZCT-4050 | 40 | 50 | 10 | 0.1-15 | 3 |
