伸縮式遠紅外線隧道烘箱是指爐盤可自由伸縮、同時網鏈旋轉傳輸被加熱物料的遠紅外線隧道加熱設備，具有節能、效率高、升溫快、應用范圍廣的顯著特點。爐盤伸縮可直接將被加熱物體送入壓機模壓成型，可以節省機器人或人工取料，還可以避免機器人針刺機構對較軟材質的損傷。

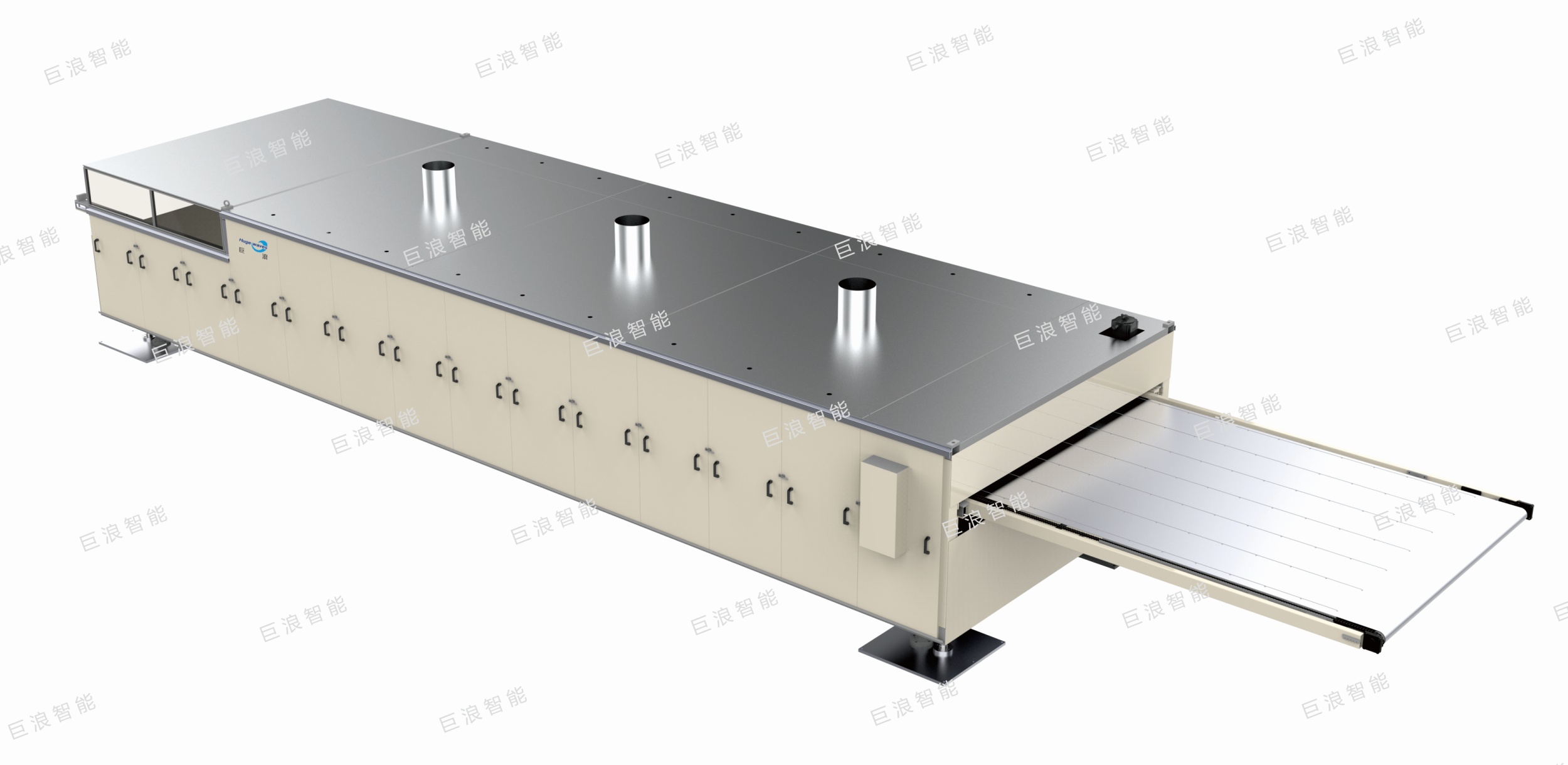

The retractable far infrared tunnel oven refers to the far infrared tunnel heating device which has retractable furnace plate and the net chain has rotary transmission of heated materials; it is superior in terms of energy conservation, efficiency, temperature rise and application scope. The retractable furnace plate can send the heated object directly into the pressing mold for shaping, which could avoid mechanical or manual feeding and protect soft materials from being damaged by mechanical piercing mechanism.
伸縮式遠紅外線隧道烘箱是指爐盤可自由伸縮、同時網鏈旋轉傳輸被加熱物料的遠紅外線隧道加熱設備，具有節能、效率高、升溫快、應用范圍廣的顯著特點。爐盤伸縮可直接將被加熱物體送入壓機模壓成型，可以節省機器人或人工取料，還可以避免機器人針刺機構對較軟材質的損傷。
The retractable far infrared tunnel oven refers to the far infrared tunnel heating device which has retractable furnace plate and the net chain has rotary transmission of heated materials; it is superior in terms of energy conservation, efficiency, temperature rise and application scope. The retractable furnace plate can send the heated object directly into the pressing mold for shaping, which could avoid mechanical or manual feeding and protect soft materials from being damaged by mechanical piercing mechanism.
選配：1.桁架上料機械手；2.壓機上下料機器人；3.板料復合機構；4.接觸式加熱機
Optional: 1. Truss feeding manipulator; 2. Material cutting robot on press; 3. Sheet composite mechanism; 4. Touch heater
*可根據客戶的需求定制
*Able to be customized
*參數及圖片可能變化，具體以技術協議為準
*Parameters and photos may vary. The technical agreement prevails.
序號 S/N | 型號Model | 加熱區數量Number of heating zones | 最高設定溫度℃ Max. Temperature ℃ | 最大加熱材料（L*W） Max. Heated Material (L*W) | 網鏈速度 mm/s Net Chain Speed mm/s | 溫度均勻度 Temperature uniformity | 溫度波動度 Temperature fluctuation |
1 | HW-IO-EO11015AA | 1 | 400 | 1000*1500 | 1-800 | ±3% | ±1℃ |
2 | HW-IO-EO21015AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
3 | HW-IO-EO31015AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
4 | HW-IO-EO11720AA | 1 | 400 | 1700*2000 | 1-800 | ±3% | ±1℃ |
5 | HW-IO-EO21720AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
6 | HW-IO-EO31720AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
7 | HW-IO-EO11827AA | 1 | 400 | 1800*2700 | 1-800 | ±3% | ±1℃ |
8 | HW-IO-EO21827AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
9 | HW-IO-EO31827AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
10 | HW-IO-EO12130AA | 1 | 400 | 2100*3000 | 1-800 | ±3% | ±1℃ |
11 | HW-IO-EO22130AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
12 | HW-IO-EO32130AA | 3 | 400 | 1-800 | ±3% | ±1℃ | |
13 | HW-IO-EO13030AA | 1 | 400 | 3000*3000 | 1-800 | ±3% | ±1℃ |
14 | HW-IO-EO23030AA | 2 | 400 | 1-800 | ±3% | ±1℃ | |
15 | HW-IO-EO33030AA | 3 | 400 | 1-800 | ±3% | ±1℃ |
